Auto knife cutting M/C SS-KCU120

Fast and continual precise circular pipe automatic knife cutter

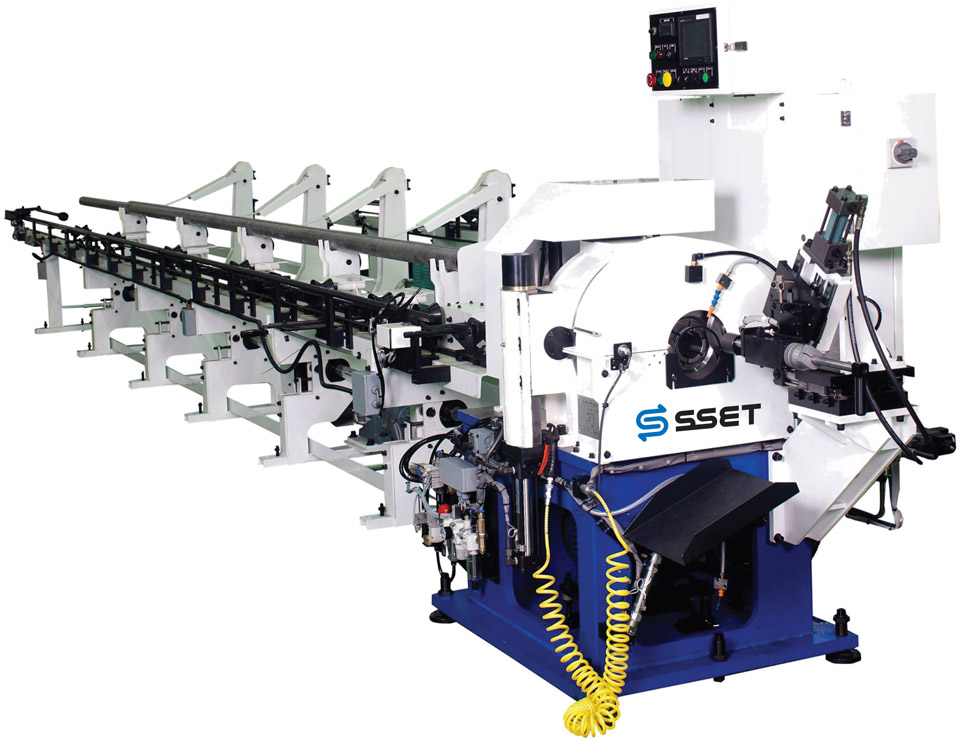

Image : Auto knife cutting M/C

01 Features

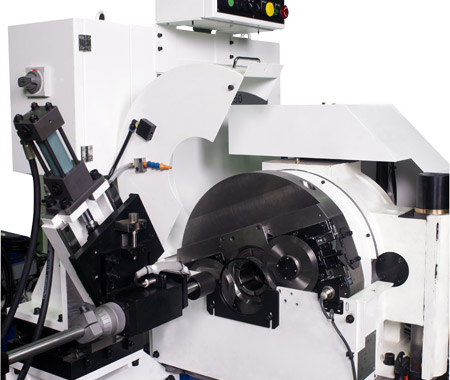

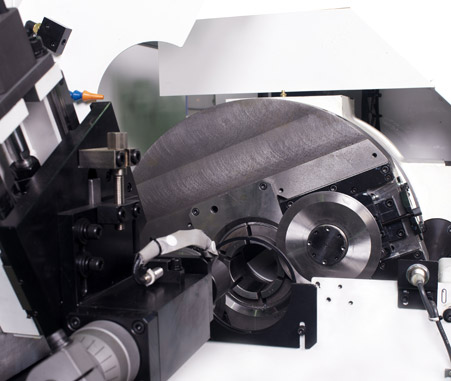

    • Cutting Head
    • Cutting Head
      Forward-backward moving knife (screw/hydraulic), material fix (collet/Air pressure)
    • Cutting length adjusting stopper
    • Cutting length adjusting stopper
      Automatic forward-backward moving, Manual Setting

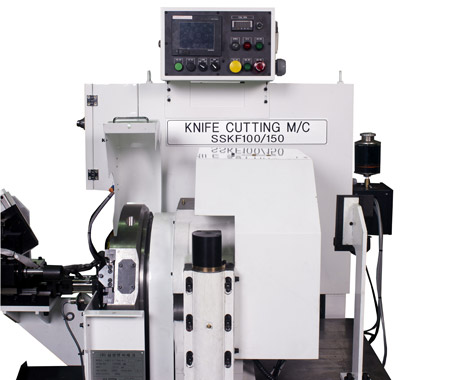

    • Control panel/ interlock cover
    • Control panel/ interlock cover
      Safety cover open/close detector
    • Optimized design
    • Optimized design

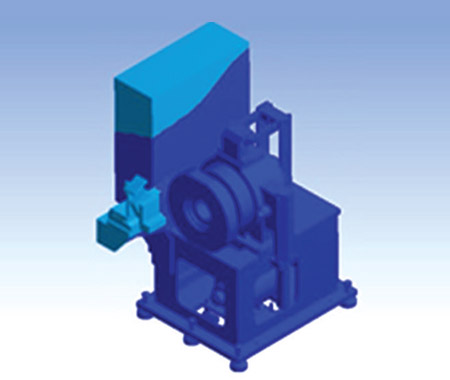

      Through stress and vibration analysis optimized to implement excellent durability, precision cutting and elegancy.

02 Capability

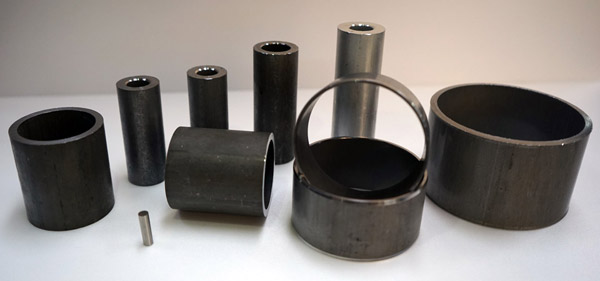

Processing range Profile Φ 60~120mm
Length 20~600mm, Remnant(50mm)
Accuracy ±0.2mm
Capacity 900ea/Hr (Φ70×3t×100L)

03 Options

  1. Automatic supplying equipment : material length 2~7m
  2. Blade Cooling Nozzle : Oil mist included
